L Type Three-Axis Welding Positioner - SLBT Series

Name: L Type ThreeAxis Welding Positioner SLBT Series
Brand: OLIVET
Price: 1 USD

Brand Name : OLIVET

Certification : CE

Place of Origin : Wuxi China

MOQ : 1set

Price : pls confirm with us

Payment Terms : 30% TT in advance, 70% TT before the shipment

Supply Ability : as you want

Delivery Time : 25~30days

Packaging Details : Mainframe naked, spare parts packed in case

Contact Now

L Type Three-Axis Welding Positioner - SLBT Series

L type three axies positioners are the best solution to the problem of lifting, rotating and tilting demanding work pieces. Height, angle and speed are all adjustable.

Stable Rotating Process

Olivet company has a comprehensive range of positioner for automatic welding. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work. Olivet's positioners are with capacities ranging for 100 to 200,000kgs.

L-type Three Axies Welding Positioners are the best solution to the problem of lifting, rotating and tilting demanding work pieces. Height, angle and speed are all adjustable. They have infinitely variable height control as a result of a hydraulic cylinder and remote control of all functions.

Scope of Delivery

A. 1 Main body

B. 1 Lifting system

C. 1 Electric control system

1 control panel

1 remote pendant

1 foot switch

Main Technical Parameters

Model	Max. load	Rotation peed	Tilting range	Tilting Speed	Rotation motor	Tilting Motor	Elevating stroke
SLBT-05	500 kg	0.1-1 rpm	360º	1 rpm	0.75kw	1.5 kw	500 mm
SLBT-10	1,000 kg	0.1-1 rpm	360º	1 rpm	1.1 kw	2.2 kw	600 mm
SLBT-15	1,500 kg	0.1-1 rpm	360º	1 rpm	1.5 kw	2.2 kw	700 mm
SLBT-30	3,000 kg	0.1 – 1 rpm	360º	0.5 rpm	1.5 kw	3 kw	800 mm
SLBT-50	5,000 kg	0.1 – 1 rpm	360º	0.5 rpm	2.2 kw	4 kw	1200 mm
SLBT-100	8,000 kg	0.1 – 1 rpm	360º	0.4 rpm	3 kw	5.5 kw	1500 mm

Quality L Type Three-Axis Welding Positioner - SLBT Series wholesale

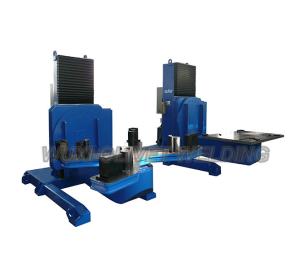

L Type Three-Axis Welding Positioner - SLBT Series Images
