Double Column Positioner - TWS Seriess

Name: Double Column Positioner TWS Seriess
Brand: OLIVET
Price: 1 USD

Brand Name : OLIVET

Certification : CE

Place of Origin : Wuxi China

MOQ : 1set

Price : pls confirm with us

Payment Terms : 30% TT in advance, 70% TT before the shipment

Supply Ability : as you want

Delivery Time : 25~30days

Packaging Details : Mainframe naked, spare parts packed in case

Contact Now

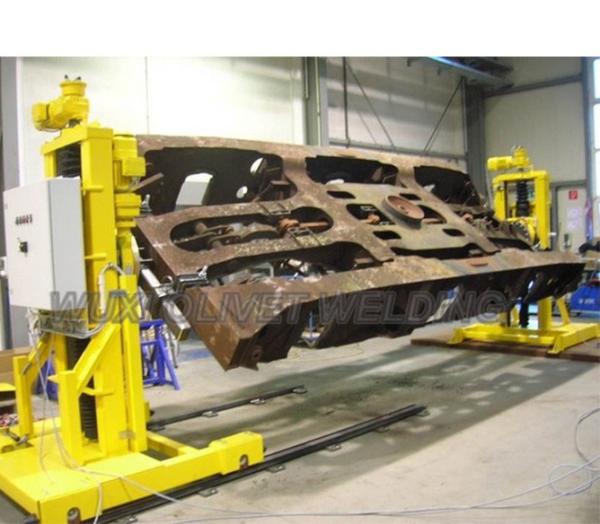

Double Column Positioner - TWS Seriess

TWB type three axies positioners are the best solution to the problem of lifting, rotating and tilting demanding work pieces. Height, angle and speed are all adjustable.

Stable Rotating Process

Olivet company has a comprehensive range of positioner for automatic welding. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work. Olivet's positioners are with capacities ranging for 100 to 200,000kgs.

TWS type Three Axies Welding Positioners are the best solution to the problem of lifting, rotating and tilting demanding work pieces. Height, angle and speed are all adjustable. They have infinitely variable height control as a result of a hydraulic cylinder and remote control of all functions.

Scope of Delivery

A. 1 Main body

B. 1 Electric control system

1 control panel

1 remote pendant

Main technical parameter

Model	Max. load	Distance of Gravity	Eccentricity distance	Rotation speed	Tilting range	Table diameter
TWS50	5,000 kg	600 mm	200 mm	0.05-0.5 rpm	360°	1,800 mm
TWS100	10,000 kg	600 mm	200 mm	0.05-0.5 rpm	360°	2,000 mm
TWS200	20,000 kg	1,000 mm	200 mm	0.04-0.4 rpm	360°	2,200 mm
TWS300	30,000 kg	1,500 mm	200 mm	0.03-0.3 rpm	360°	2,500 mm
TWS500	50,000 kg	2,000 mm	200 mm	0.02 - 0.2 rpm	360°	3,000 mm

Quality Double Column Positioner - TWS Seriess wholesale

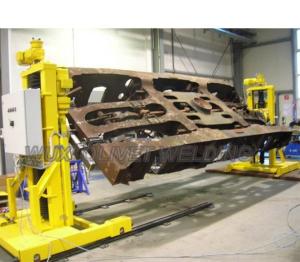

Double Column Positioner - TWS Seriess Images
