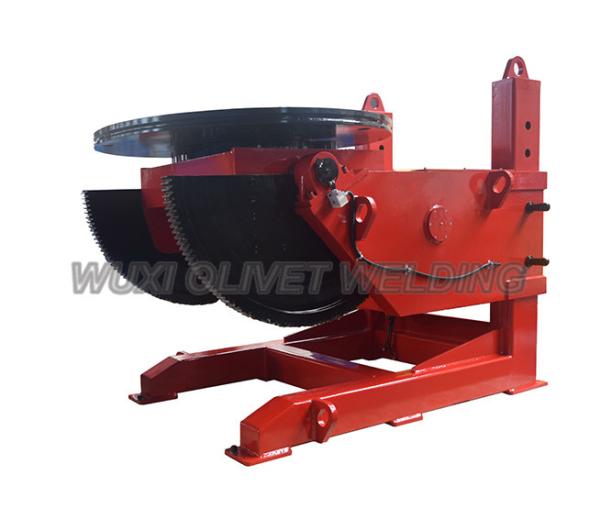

Elevating Positioner - HBS Series
Olivet's range of welding elevating positioner provides the quickest means of elevating, rotating and tilting through 360 degrees while allowing maximum access to the workpiece.
Stable Rotating Process
Olivet has a comprehensive range of positioner for automatic welding. These very versatile handling tools enable welding to be carried out in the optimum positions to benefit the quality of the work. Olivet's welding positioners are with capacities ranging for 300 to 500,000kgs.
single base positioner, Heavy Duty Positioner, Elevating Positioner hot sale.
HBS Series welding welding positioners are the best solution to the problem of elevating, rotating and tilting demanding work pieces. Angle and speed are all adjustable. They have infinitely variable height control as a result of a remote control of all functions.
Scope of Delivery
A. 1 Main Body
B. 1 Electric control system
1 control panel
1 remote pendant
1 foot switch
Main Technical Parameters
| Model | Max. load | Gravity dist. | Eccentricity dist. | Rotation speed | Tilting range | Table diameter |
| HBS-06 | 600 kg | 200 mm | 100 mm | 0.1-1 rpm | 0º-135º | 1000 mm |
| HBS-10 | 1,000 kg | 200 mm | 100 mm | 0.075-0.75 rpm | 0º-135º | 1000 mm |
| HBS-20 | 2,000 kg | 200 mm | 200 mm | 0.08-0.8 rpm | 0º-135º | 1200 mm |
| HBS-30 | 3,000 kg | 200 mm | 200 mm | 0.05 -0.5 rpm | 0º-135º | 1400 mm |
| HBS-50 | 5,000 kg | 300 mm | 200 mm | 0.05 -0.5 rpm | 0º-135º | 1500 mm |
| HBS-100 | 10,000 kg | 350mm | 200mm | 0.05 -0.5 rpm | 0º-135º | 1800 mm |
Note
Please note when you select your Positioner, the gravity center and eccentricity of your work-pc including chuck.
The below two figures show HBS10 positioner’s relationship of gravity center distance and Eccentricity distance with work-pc
|
|
Elevating Positioner - HBS Series Images
|
